DSN Backstop Clutch

DSN backstop clutch can effectively prevent material due to gravity retrograde or falling accident happened, and the non-return state, theentire drive is still in the unloading state, will not affect to the motor speed reducer drive repair and replacement parts, to prevent damage of because of the drive system J and appear be retrograde accident on safety protection. Non-return is used in large inclined belt conveyor, bucket elevator, scraper conveyor of non-return protection, other equipment should consult use.

Category: Backstop Clutch

Description

Technical Parameters

Type	Rated backstop torque(N.m)	Maximum inner race speed(r/min)	Freewheeling drag torque(N.m)	Maximum bore(Φ)	Maximum weight(kg)
DSN(NJD)052	25000	130	32	160	112
DSN(NJD)038	38000	130	40	200	182
DSN(NJD)050	50000	100	68	220	354
DSN(NJD)090	90000	100	95	250	644
DSN(NJD)130	130000	90	86	270	755
DSN(NJD)200	200000	90	100	300	1088
DSN(NJD)280	280000	90	128	320	1426
DSN(NJD)330	330000	80	145	350	1921
DSN(NJD)530	530000	80	200	420	2945
DSN(NJD)710	710000	80	225	450	3518
DSN(NJD)1000	1000000	70	258	510	4442
DSN(NJD)1300	1300000	60	330	540	5213
DSN(NJD)1700	1700000	50	420	620	7005

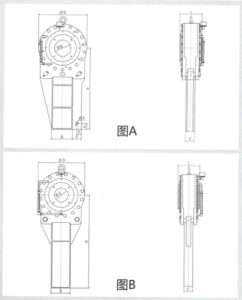

External structural dimensions

Type	A	B	C	D	E	F	H	h	L
DSN(NJD)052	–	140	80	360	–	–	800	–	150
DSN(NJD)038	–	160	88	430	–	–	850	–	160
DSN(NJD)050	–	200	102	500	–	–	1000	–	240
DSN(NJD)090	–	250	120	600	–	–	1200	–	290
DSN(NJD)130	40	280	120	650	120	60	1100	80	290
DSN(NJD)200	45	320	130	780	135	60	1300	80	290
DSN(NJD)280	50	360	140	850	150	70	1500	100	320
DSN(NJD)330	55	400	140	930	160	70	1600	100	360
DSN(NJD)530	60	450	150	1030	180	80	1800	120	450
DSN(NJD)710	70	500	160	1090	210	100	2000	20	480
DSN(NJD)1000	80	560	170	1200	230	110	2200	150	500
DSN(NJD)1300	80	630	180	1300	230	110	2400	150	500
DSN(NJD)1700	90	700	180	1450	250	120	2500	180	540

Key Design

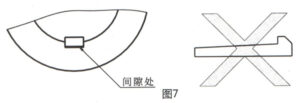

Note: The shaft bore must not use sliding grooves or wedge keys. These connections will deform the inner ring under load.

The shaft bore mainly uses a flat key connection. There must be a clearance between the inner ring and the key plane. The keyway and its tolerance must follow the rules in Table. The flat key must follow the GB/T 1095-1979 standard. However, our technical department can produce the key according to customer requirements after written approval.

Bore Keyway & Tolerance (GB/T 1095-1979 D10)

Nominal diameter	Groove width	Shaft tolerance	Hole tolerance	Groove depth	Hole depth	Hole depth tolerance
65-75	20	0.052	0.214	7.5	4.9	0.2
75- 85	22	0.052	0.214	9	5.4	0.2
85- 95	25	0.052	0.214	9	5.4	0.2
95-110	28	0.052	0.214	10	6.4	0.2
110-130	32	0.062	0.26	11	7.4	0.2
130-150	36	0.062	0.26	12	8.4	0.2
150-170	40	0.062	0.26	13	9.4	0.2
170-200	45	0.062	0.26	15	10.4	0.2
200-230	50	0.062	0.26	17	11.4	0.2
230-260	56	0.074	0.32	20	12.4	0.3
260-290	63	0.074	0.32	20	12.4	0.3
290-330	70	0.074	0.32	22	14.4	0.3
330-380	80	0.074	0.32	25	15.4	0.3
380.44	90	0.087	0.38	28	17.4	0.3
440-500	100	0.087	0.38	31	19.5	0.3

Anti-Rotation Stop Design

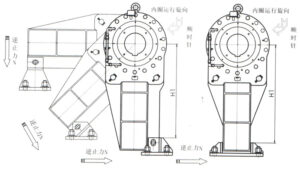

The anti-rotation stop holds the backstop lever arm. It must have enough shear (pressure) strength. The required shear strength changes with the length of the lever arm. The table and figure below show the minimum shear strength for a standard lever arm.

When you use pin holes, the holes on the stop must be slotted. The slot direction must match the installation angle of the lever arm. This prevents radial force on the outer ring of the backstop. When the backstop locks, the pin takes no force. It only prevents rotation during normal operation.

Minimum shear force of the anti-rotation stop

Type	Lever arm length(H1)	Backstop force(N)
DSN(NJD)052	700	53571
DSN(NJD)038	750	75999
DSN(NJD)050	880	102272
DSN(NJD)090	1080	129807
DSN(NJD)130	940	207446
DSN(NJD)200	1140	263157
DSN(NJD)280	1300	323076
DSN(NJD)330	1400	353571
DSN(NJD)530	1560	509615
DSN(NJD)710	1760	605113
DSN(NJD)1000	1900	789473
DSN(NJD)1300	2100	928571
DSN(NJD)1700	2140	1191588
