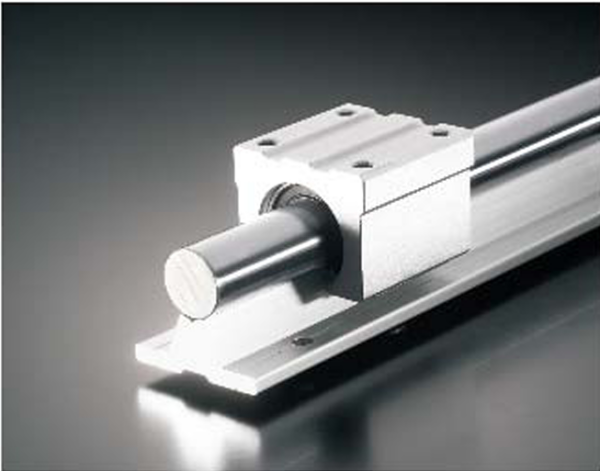

SBR TBR Linear Bushing Support Rail Unit
Support Rail Unit is assembled by of Support Rail, LM Shaft, and Open type Linear Bushing installed Case. All components are standardized for providing interchangebility，and less cost and less designing time.
The SBR TBR Linear Ball Bushing Support Rail Unit integrates a Support Rail, LM Shaft, and Open-type Linear Bushing Case. We standardize all components to provide interchangeability while reducing costs and design time.
The SBR-S and TBR-S types serve as optimum guide units for high-precision, deflection-free sliding systems. They deliver smooth motion and maximum rigidity, further saving you both time and money.

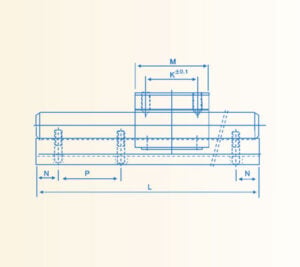

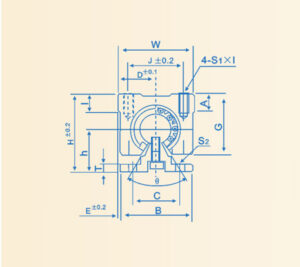

SBR S Series
| Part Number | Shaft Dia. |
Basic Load Ratings | Weight | Dimensions(mm) | |||||||
| Unit | Case* | Dynamic C(N) |
Static Co(N) |
Case(kg) | Rail(kg/m) | D | h | H | E | θ | |
| SBR16S | SBR16UU | 16 | 770 | 1170 | 0.15 | 2.55 | 22.5 | 25 | 45 | 2.5 | 80° |
| SBR20S | SBR20UU | 20 | 860 | 1370 | 0.20 | 3.50 | 24 | 27 | 50 | 1.5 | 60° |
| SBR25S | SBR25UU | 25 | 980 | 1560 | 0.45 | 5.30 | 30 | 33 | 60 | 2.5 | 50° |
| SBR30S | SBR30UU | 30 | 1560 | 2740 | 0.63 | 7.40 | 35 | 37 | 70 | 5 | 50° |
| SBR35S | SBR35UU | 35 | 1660 | 3130 | 0.92 | 10.05 | 40 | 43 | 80 | 7.5 | 50° |
| SBR40S | SBR40UU | 40 | 2150 | 4010 | 1.33 | 13.10 | 45 | 48 | 90 | 7.5 | 50° |
| SBR50S | SBR50UU | 50 | 3820 | 7930 | 3.00 | 20.65 | 60 | 62 | 115 | 12.5 | 50° |
| Part Number |
Dimensions(mm) | ||||||||||||
| W | G | A | B | T | M | S1*I | J | K | S2 | C | N* | P* | |
| SBR16S | 45 | 33 | 9 | 40 | 5 | 45 | M5*12 | 32 | 30 | 5.5 | 30 | 20 | 150 |
| SBR20S | 48 | 39 | 11 | 45 | 5 | 50 | M6*12 | 35 | 35 | 5.5 | 30 | 20 | 150 |
| SBR25S | 60 | 47 | 14 | 55 | 6 | 65 | M6*12 | 40 | 40 | 6.6 | 35 | 25 | 200 |
| SBR30S | 70 | 56 | 15 | 60 | 7 | 70 | M8*18 | 50 | 50 | 6.6 | 40 | 25 | 200 |
| SBR35S | 80 | 63 | 18 | 65 | 8 | 80 | M8*18 | 55 | 55 | 9 | 45 | 30 | 200 |
| SBR40S | 90 | 72 | 20 | 75 | 9 | 90 | M10*20 | 65 | 65 | 9 | 55 | 30 | 200 |
| SBR50S | 120 | 91 | 25 | 95 | 11 | 110 | M10*20 | 94 | 80 | 11 | 70 | 35 | 200 |

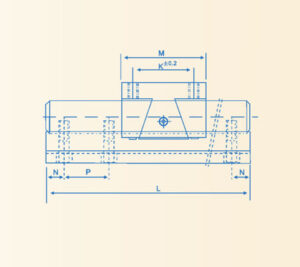

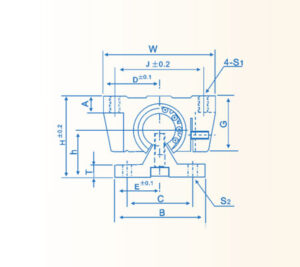

TBR S Series
| Part Number | Shaft Dia. |
Basic Load Ratings | Weight | Dimensions(mm) | ||||||
| Unit | Case** | Dynamic C(N) | Static Co(N) | Case(kg) | Rail(kg/m) | D | h | H | E | |
| TBR16S | TBR16UU | 16 | 392 | 490 | 0.18 | 2.45 | 31 | 22.14 | 40 | 25 |
| TBR20S | TBR20UU | 20 | 784 | 1176 | 0.30 | 3.60 | 34 | 29.01 | 50 | 27.5 |
| TBR25S | TBR25UU | 25 | 1568 | 2352 | 0.60 | 5.60 | 41 | 31.97 | 60 | 32.5 |
| TBR30S | TBR30UU | 30 | 1764 | 2940 | 0.90 | 8.00 | 45.5 | 36.52 | 70 | 37.5 |
| Part Number |
Dimensions(mm) | ||||||||||||
| W | G | A | B | T | M | S1 | J | K | S2 | C | N* | P* | |
| TBR16S | 62 | 26 | 8 | 50 | 6 | 42 | M5 | 50 | 30 | 5.5 | 37 | 20 | 150 |
| TBR20S | 68 | 31 | 10 | 55 | 8 | 51 | M6 | 54 | 37 | 5.5 | 40 | 20 | 150 |
| TBR25S | 82 | 41 | 12 | 65 | 10 | 65 | M8 | 65 | 50 | 6.6 | 45 | 25 | 200 |
| TBR30S | 91 | 48 | 12 | 75 | 12 | 75 | M8 | 75 | 60 | 6.6 | 55 | 25 | 200 |
