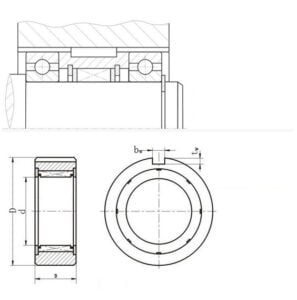

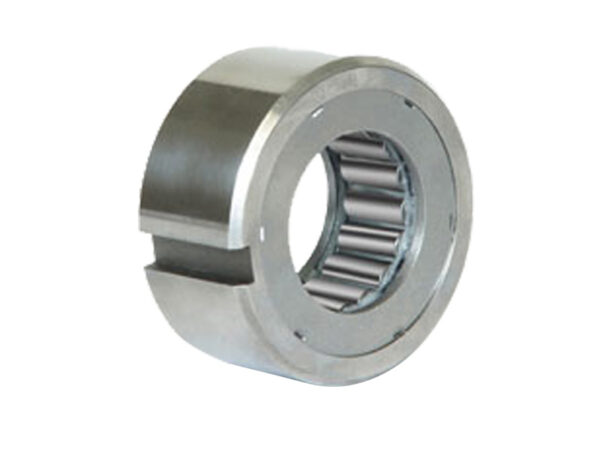

CK-D B200 Series Sprag Type Freewheel
Type |
Nominal Torque | Overrunning Limiting Speeds | Dimension in contour (mm) | BEARING GB/T276-1994 | Weight | ||||
| (N·M) | (r/min) | D(H7) | d(H7) | B | bn*tn | (kg) | |||
| Outer race | Inner race | ||||||||
| CK-D1740 | 33 | 1680 | 425 | 40 | 17 | 25 | 4*2.5 | 6203 | 0.18 |
| CK-D2047 | 50 | 1680 | 425 | 47 | 20 | 25 | 5*3.0 | 6204 | 0.25 |
| CK-D2552 | 84 | 1260 | 340 | 52 | 25 | 25 | 5*3.0 | 6205 | 0.28 |
| CK-D3062 | 200 | 1260 | 300 | 62 | 30 | 28 | 8*4.0 | 6206 | 0.45 |
| CK-D3572 | 318 | 1260 | 225 | 72 | 35 | 28 | 8*4.0 | 6207 | 0.6 |
| CK-D4080 | 470 | 1260 | 170 | 80 | 40 | 32 | 10*5 | 6208 | 0.84 |
| CK-D4580 | 470 | 1260 | 170 | 80 | 45 | 32 | 8*4.0 | 6208 | 0.8 |
| CK-D4585 | 470 | 1260 | 170 | 85 | 45 | 32 | 10*5 | 6209 | 0.91 |
| CK-D5090 | 670 | 840 | 170 | 90 | 50 | 32 | 10*5 | 6210 | 0.98 |
| CK-D55100 | 820 | 840 | 140 | 100 | 55 | 38 | 10*5 | 6211 | 1.49 |
| CK-D60110 | 1050 | 840 | 128 | 110 | 60 | 42 | 10*5 | 6212 | 1.95 |
| CK-D65120 | 1050 | 840 | 128 | 120 | 65 | 42 | 10*5 | 6213 | 2.33 |
| CK-D70125 | 1188 | 700 | 128 | 125 | 70 | 42 | 12*5 | 6214 | 2.45 |
| B203 | 33 | 2040 | 500 | 40 | 16.51 | 25 | 4*2.5 | 6203 | 0.23 |
| B204 | 50 | 2040 | 500 | 47 | 18.796 | 25 | 5*3.0 | 6204 | 0.34 |
| B205 | 84 | 1530 | 400 | 52 | 23.622 | 25 | 5*3.0 | 6205 | 0.45 |
| B206 | 200 | 1530 | 350 | 62 | 32.766 | 28 | 7*4.0 | 6206 | 0.68 |
| B207 | 318 | 1360 | 300 | 72 | 42.088 | 28 | 7*4.0 | 6207 | 0.8 |
| B208 | 470 | 1360 | 200 | 80 | 46.761 | 32 | 10*4.5 | 6208 | 0.91 |
| B209 | 470 | 1360 | 200 | 85 | 46.761 | 32 | 10*4.5 | 6209 | 0.95 |
| B210 | 670 | 1020 | 200 | 90 | 56.109 | 32 | 10*4.5 | 6210 | 1 |
| B211 | 670 | 1020 | 200 | 100 | 56.109 | 32 | 10*4.5 | 6211 | 1.4 |
| B212 | 1050 | 1000 | 180 | 110 | 70.029 | 42 | 10*4.5 | 6212 | 1.8 |
| B213 | 1050 | 1000 | 180 | 120 | 70.029 | 42 | 10*4.5 | 6213 | 2.3 |
| B214 | 1188 | 860 | 180 | 125 | 79.356 | 42 | 12*4.5 | 6214 | 2.4 |
