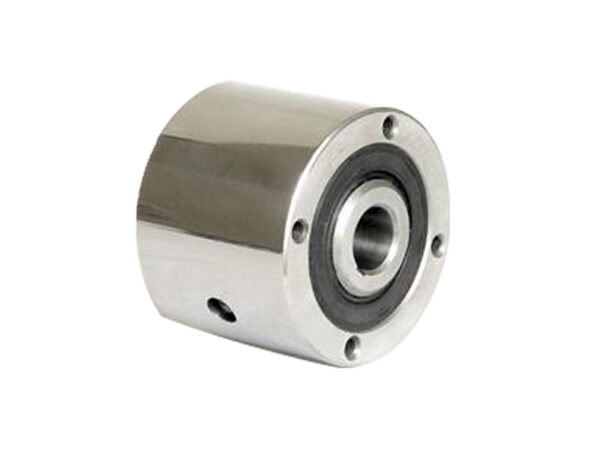

MZ Backstop Clutch
The MZ Backstop Clutch comes prelubricated with special grease, requires no maintenance, and offers easy installation and handling.
MZ Backstop Clutch Features:
1. Prelubricated with special grease
2. No lubrication maintenance required.
3. Easy installation and handling
Commonly used in glass machinery equipment, sprockets, automatic production lines and other occasions.
| TYPE | Ma*imum torque (N·m) | Freewheeling friction torque (N·m) | Ma*imum freewheeling speed (r/min) | Ma*imum freewheeling speed (cycles/min) | Shaft Bore Diameter (H7) | Shaft Bore Keyway Dimensions | A | B | C | D | E (M6) | F | G | H-M Taper Hole: Quantity*Size*Pitch | S | Weigh(kg) | |
| inner race | outer race | ||||||||||||||||
| MZ15 | 186 | 0.2 | 1.8 | 900 | 150 | 15 | 5*2.3 | 62 | 68 | 60 | 58 | 47 | 25 | 5.5 | 6*M5*P0.8 | 10 | 1.4 |
| MZ17 | 215 | 0.2 | 1.7 | 800 | 150 | 17 | 5*2.3 | 66 | 75 | 64 | 64 | 52 | 28 | 6.3 | 6*M5*P0.8 | 10 | 1.8 |
| MZ20 | 323 | 0.29 | 1.6 | 700 | 150 | 20 | 6*2.8 | 67 | 80 | 65 | 68 | 55 | 30 | 7.6 | 6*M6*P1.0 | 12 | 2 |
| MZ30-22 | 735 | 0.39 | 1.5 | 500 | 150 | 22 | 6*2.8 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
| MZ30-25 | 25 | 8*3.3 | |||||||||||||||
| MZ30 | 30 | 10*3.3 | |||||||||||||||
| MZ35 | 1.08 | 0.49 | 1.4 | 300 | 150 | 35 | 10*3.3 | 87 | 110 | 85 | 95 | 80 | 50 | 8.7 | 6*M8*P1.25 | 16 | 4.8 |
| MZ45-40 | 1.62 | 0.69 | 1.4 | 300 | 150 | 40 | 12*3.3 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 8*M8*P1.25 | 16 | 6.2 |
| MZ45 | 45 | 14*3.8 | |||||||||||||||
| MZ60-50 | 2.11 | 0.98 | 1.2 | 250 | 150 | 50 | 14*3.8 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
| MZ60-55 | 55 | 16*4.3 | |||||||||||||||
| MZ60 | 60 | 18*4.4 | |||||||||||||||
| MZ70-65 | 3.04 | 1.27 | 1.1 | 250 | 150 | 65 | 18*4.4 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 8*M8*P1.25 | 16 | 13.2 |
| MZ70 | 70 | 20*4.9 | |||||||||||||||
